[EU/US Direct] RAY5 5.5W Laser Engraver 3.5Inch Touch Screen Offline Carving Ultrafine Focused Laser 32-Bit Chipset, Upgradable Laser Module

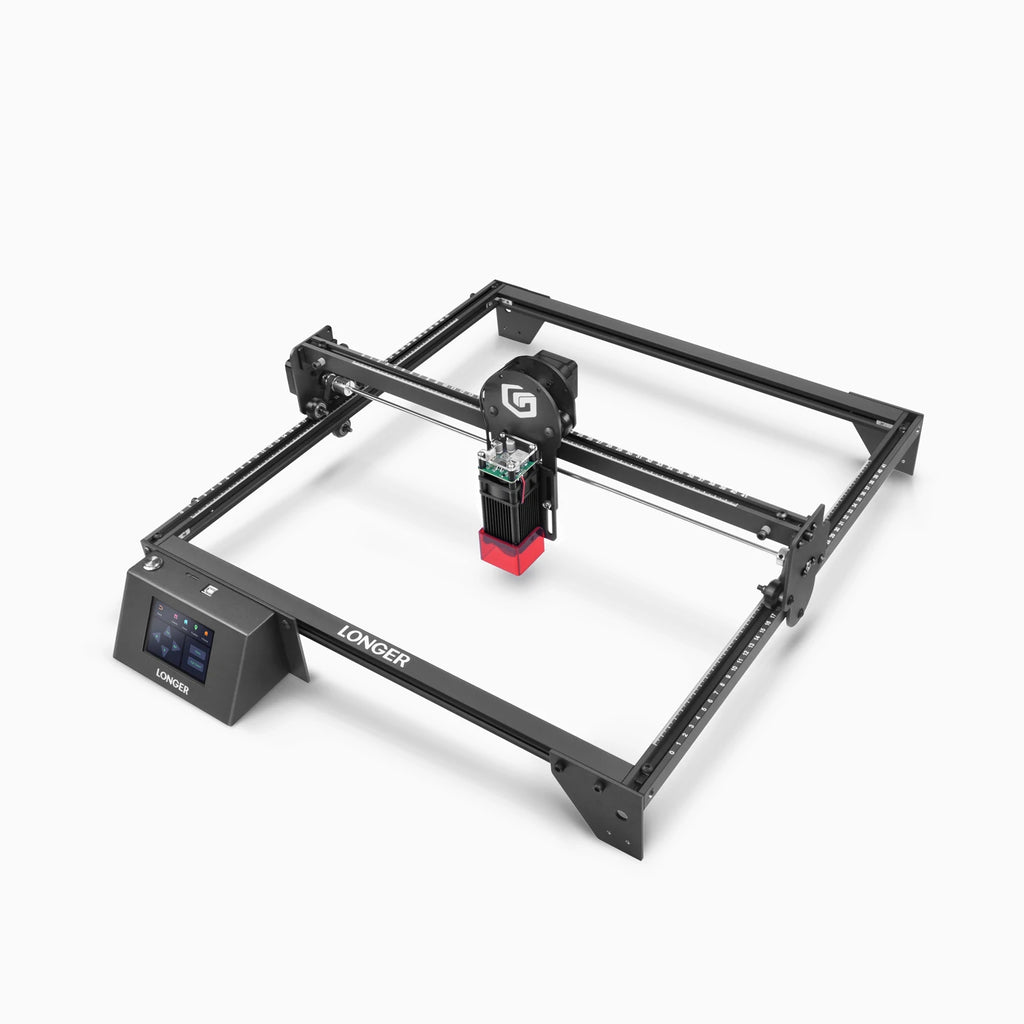

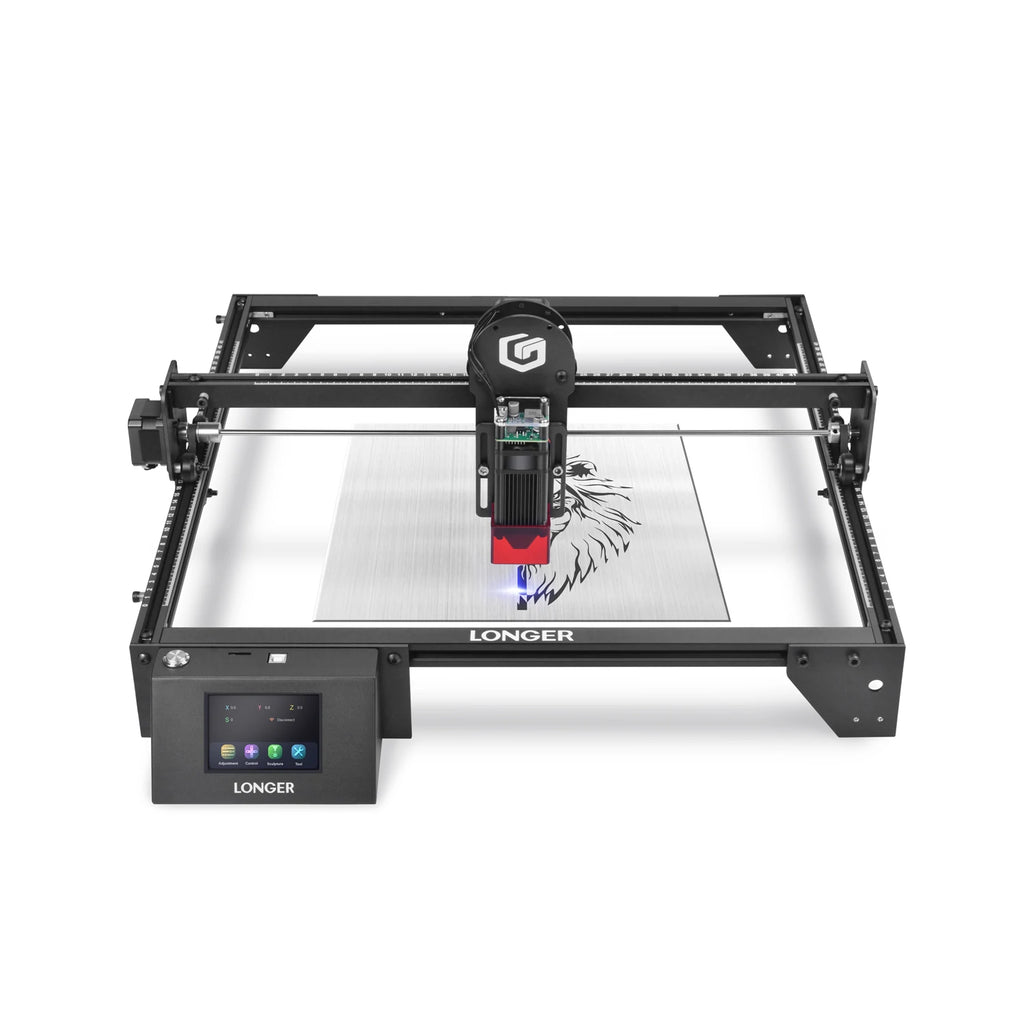

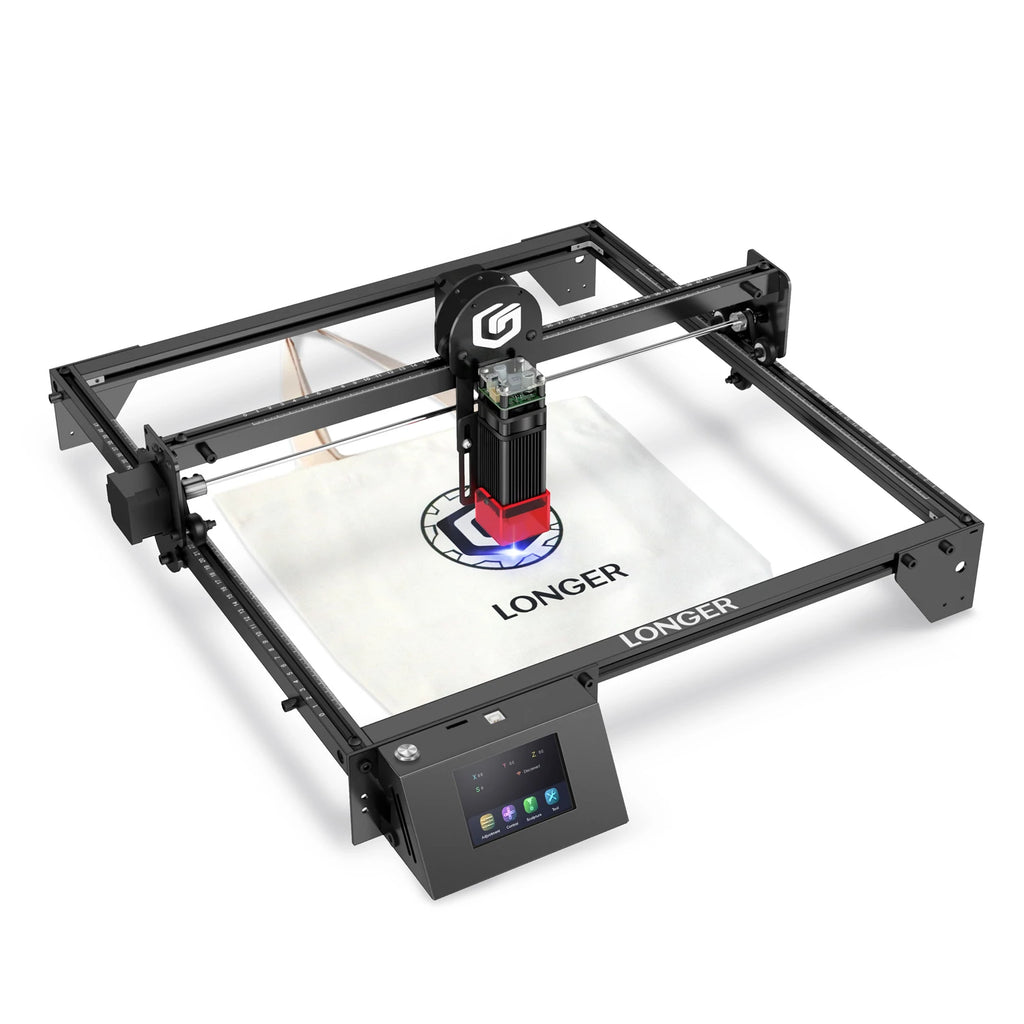

The RAY5 5.5W Laser Engraver is designed for users seeking a highly capable machine for cutting and engraving. The system includes a built-in 3.5″ touch screen interface that enables offline operation—no computer connection required. Simply save your file to a TF card and run the unit directly. Additionally, the unit features a high-precision FAC-laser point (0.08×0.08 mm) and a powerful 5–5.5 W laser module for stronger cuts and engravings.

Specifications

• Model Number: Ray5 5W / Ray5 10W

• Laser Technology: Dioser Technology

• Working Area: 400×400 mm (15.75×15.75 inch)

• Laser Wavelength: 450 nm

• Focal Length: Fixed Focus-30 mm / Fixed Focus-50 mm

• Laser Spot Size: 0.08×0.08 mm / 0.06×0.06 mm

• Optical Output Power: 5 W / 10 W

• Z Axis-Height Range: Up to 47 mm

• Fastest Working Speed: Speed 10000 mm/min

• Engraver Output: DC12V 5A

• Engraver Input: AC 110-240 V

• Software: LaserGRBL & LightBurn

• Connection: USB / TF Card / WiFi

• Laser Engraver Size: 586 × 583 × 176.5 mm (23.07 × 22.95 × 6.95 inch)

• Package Size: 621 × 299 × 127 mm

• Packaging Weight: 4.7 Kg / 4.8 Kg

Features

• Touch Screen & Offline Carving: Built-in 3.5″ touch screen with intuitive interface enabling cutting/engraving directly from TF card—no computer required.

• Ultrafine Laser Point & Powerful Laser Module: Latest FAC laser tech with a 0.08×0.08 mm laser spot (smaller spot = more focused energy) and optical output power of 5–5.5 W for improved engravings and cuts.

• 32-Bit Chipset & WiFi Connection: Equipped with an ESP32 chipset running at 240 MHz (faster than typical 8-bit alternatives) and supports WiFi control via web or app.

• Safety Protection: Features move protection and thermal protection—if the machine shifts during operation or overheats/flame is detected, it auto-shuts down for safety.

• Compatible with Windows/MAC/Linux System: Supports LaserGRBL (free) and LightBurn (paid) software and imports BMP, JPG, PNG, DXF, AI, SVG file formats.

• Power Button & Eye Protection: Includes dedicated power switch and an acrylic cover for the laser module to shield laser light; separate eye protection is recommended for scattered beams.

• Upgradable Laser Module: The unit supports an upgrade path to more powerful laser modules (8 W/10 W) via compatible mainboard and power supply.
